Universal Bluetooth Mini Tablet Keyboard Market Products Choice provide mini projector keyboard,portable computer keyboard,foldable wireless keyboard,stylish keyboard (1 Set) Communication Equipment Tiger 911 Telephone Dialer Tool Input NC NO Signal or voltage GSM Alarm system accessories. Price at this time US $19.27/piece. Check price now to get discount! Dont waste your time. Buy Now only at HUIKE Store Trusted Seller Store!
Excellent item can boost the quality of your life. Eligible to be acquired. Inexpensive cost and also cost-free delivery. Let's get before prices increase.
Features:
Working voltage: DC11V TO 15 v
Static electricity: 20 ma (at DC12V)
Dialing method: audio/pulse, J1 jumper selection
Alarm: N.C., N.O. and voltage signal jumper J2, J3
The recording time: 20 seconds, after power off the phone number, voice is not lost
Phone store telephone number: 4 group, each group may be deposited in the longest 16 digits
Secondary private password: 0-6 private password, remove top three available alarm, as a whole (6) code is used to change the Settings
The factory password: 911

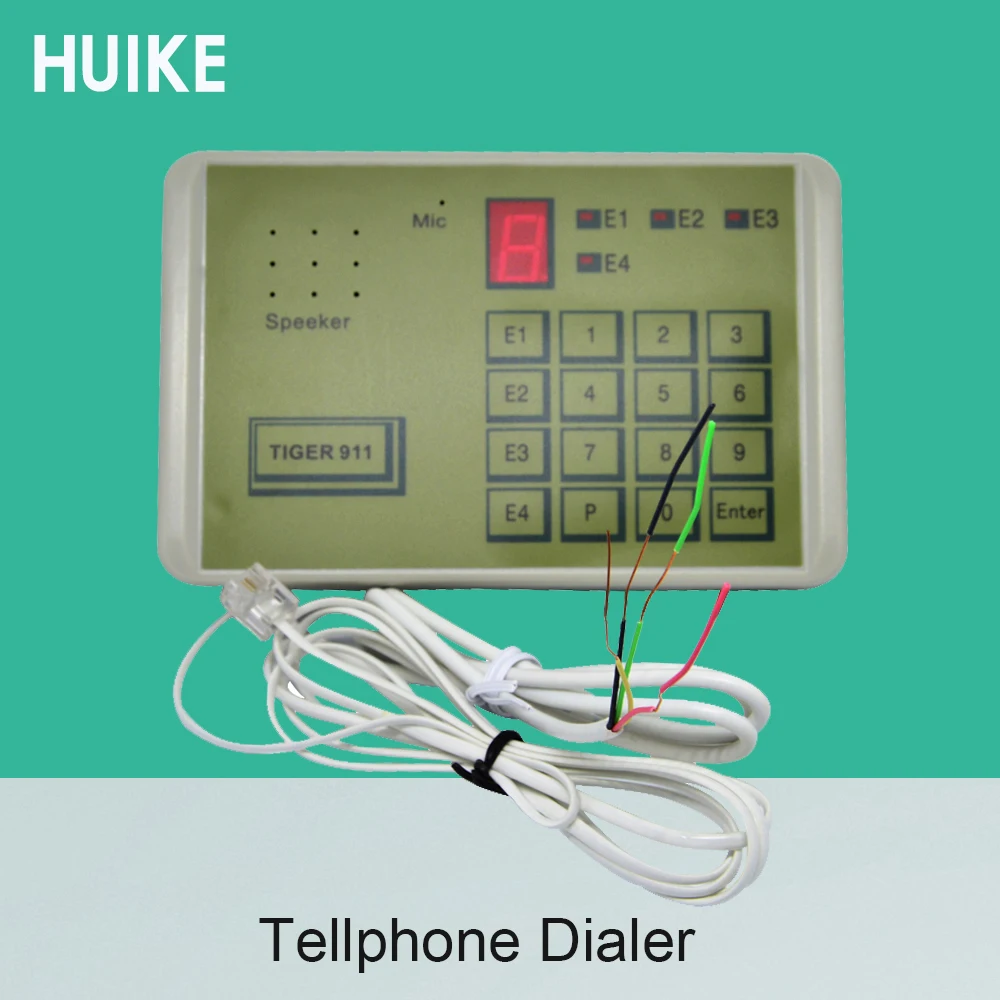

(1) the speaker
(2) the microphone
(3) 7 segment display: to store the number of input, will show the number at the same time
(4) the E4 light: set the E4 number, this goes on
(5) E1 indicator light: setting E1 telephone or mobile phone number, this goes on
( 6) E2 status of E2 telephone or mobile phone number, lamp goes on
(7) E3 indicator light: setting E3 telephone or mobile phone number, this goes on
(13) P button can be for the following purposes:
Can store 6 digit number as a password
When used in automatic return system voice switchboard, can be used as the pause,1 time is stand for 2 sec, 2 times is stand for 4 sec and so on
Microcomputer automatic machine for help AUTO - DIALER operating
After startup self-check first:
After self-testing enter the working state, seven segment display of the lower right corner point, if has the information, received the alarm signal the Dialer will alarm, if you want setting or edit setting, do like these steps
To set .view phone number.password and record
1.Start to programming
First press P then enter personal password (0 to 6) then press Enter
Note: the factory out code is 911
For example: the new machine does not change the password when the state of programming operation is as follows:
P 9 1 1 Enter
If password input the correct display O and then into programming status display5
If password input error display E, then back to work status, need login a corrected password
2.setting the first number:
At the state of programming,(display S),for example, the number is 9353399, so like this
E1 9 3 5 3 3 9 9 ENTER
Type in the ENTER of time store number, if it display O, It mean number have been storage
And then returns to S state, if it is display E, said failed to correct,
Machine will return S state, the user can operate again, if you want to remove the first number, When display S you press E1,and then press ENTER
If the dialer will first call telephone switchboard, Do not need switchboard operator,and then auto call extension telephone, such as the extension number is 12,do as below:
E1 9 3 5 3 3 3 9 9 P 1 2 ENTER
Each time you press the P, meaning pause 2 seconds, if twice, meaning pause 4 seconds
(Store 2, 3, 4,number is the same way like number 1)
3.View the number what you have been setted:
In the condition of programming, which showed S state, press 3, displayed C, mean CHECK, then you want
Query of E1, E2, E3, E4 or PAUSE, began to display number, its operating procedures are as follows:
3 E1 or E2 or E3 or E4 or P display shows the number or password, when finish shows ,buzzer will”du” rang
